Headlight & Tail Light Harness, 1935-1936, 48-11647

1936 Car & pickup. use with electric fuel gauge, B-14487 female connects available separately (approximately 20 required to wire complete car)
SKU: 48-11647

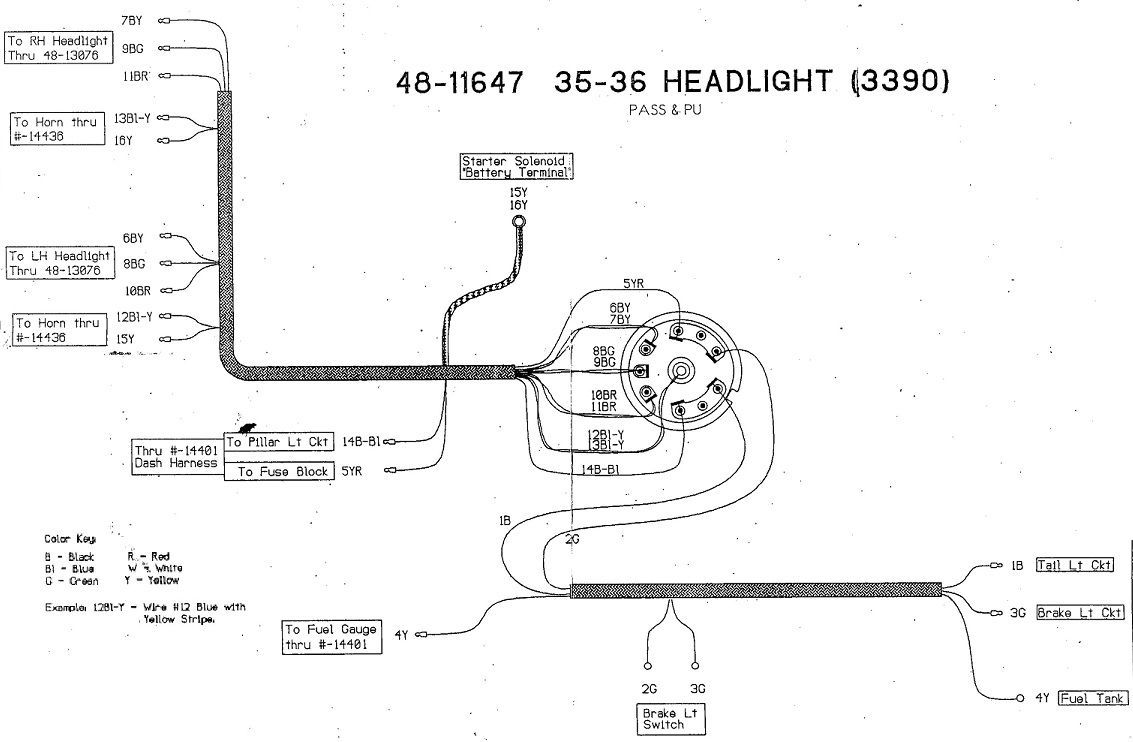

This harness is a copy of original factory wiring with color coded cloth covered wire.  Harnesses come with wiring diagrams for ease of installation.  Other wiring also available, see index for specific section.  Wire connector sleeves and frame clips are not included and may be ordered as needed, see wire connectors and frame clips section.

Products specifications
Attribute nameAttribute value
Per Car1
Year1936 Car
Year1936 Pickup
